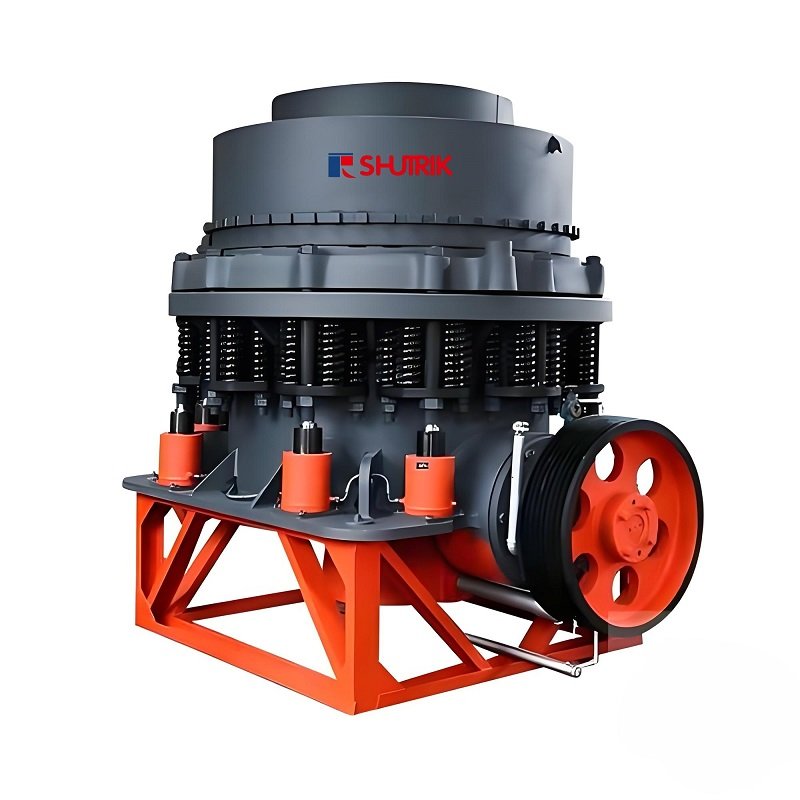

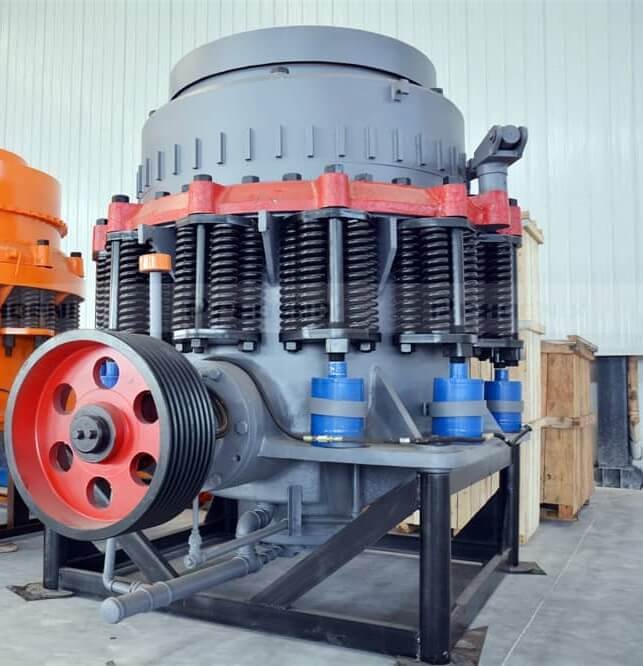

Symons Cone Crusher

The Symons cone crusher is a high-efficiency mining crushing equipment. It is mainly used for medium and fine crushing of ores and rocks with medium to high hardness.

The equipment uses a motor to drive a horizontal shaft to rotate, which, through bevel gear transmission, causes the moving cone to oscillate, achieving the crushing of materials. Its core advantage lies in its spring overload protection system. When uncrushable foreign objects enter the crushing chamber, the spring compresses, widening the discharge opening. After the foreign object is discharged, it automatically resets, effectively protecting the main unit from damage.

The Symons cone crusher for sale is particularly suitable for processing medium- to high-hardness materials. It features high crushing force, high throughput, and low maintenance costs. It is an economical and practical crushing solution for the mining and stone processing industries, and is especially suitable for small and medium-sized sand and gravel mines.

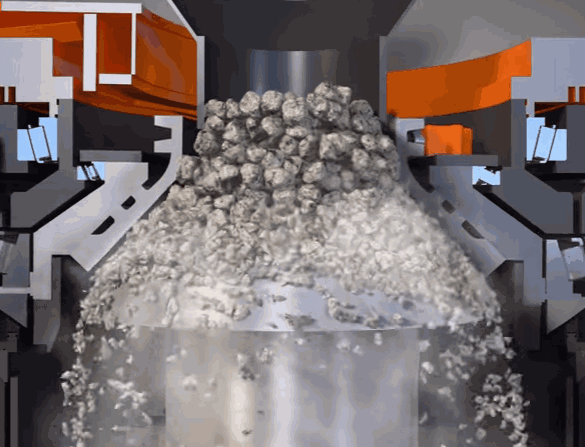

Symons Cone Crusher Working Principle

During operation, the motor drives the eccentric sleeve to rotate via a V-belt and drive shaft. The crushing cone’s axis rotates and oscillates under the force of the eccentric sleeve, causing the crushing wall surface to alternately approach and move away from the grinding wall surface. This results in the material being continuously impacted, squeezed, and bent within the annular crushing chamber formed by the fixed and moving cones, leading to its crushing. After multiple rounds of squeezing, impact, and bending, the material is crushed to the required particle size and discharged from the bottom.

The Symons cone crusher features a spring-loaded, pre-tensioned adjusting ring around its frame. When uncrushable materials such as iron blocks enter the chamber, the external force compresses the spring, lifting the adjusting ring of the fixed cone and widening the discharge opening to allow the material to pass through. After the material has passed, the spring returns to its original position.

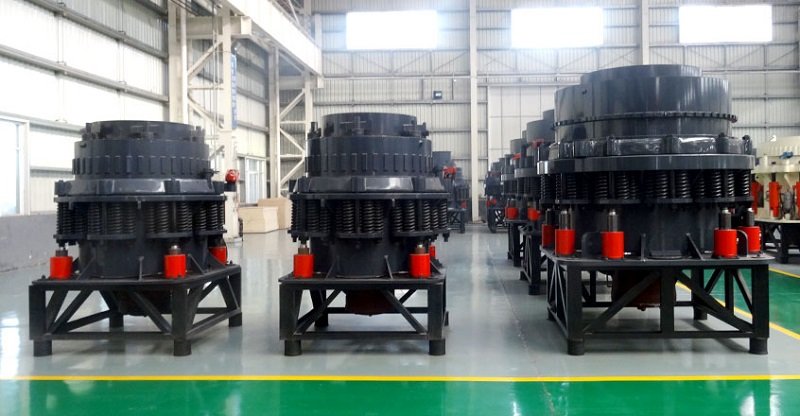

Advantages of Symons Cone Crusher for Sale

1. The precisely designed crushing chamber and spring control system produce uniform finished particles, ensuring high-quality crushing results and stable product shape.
2. The equipment has a simple structure, making it easy to maintain and operate. Operators can quickly master the operating techniques, reducing operating costs and maintenance workload.
3. Adjusting the spring tension or the position of the crushing cone allows for quick adjustment of the crushing chamber size to meet the crushing requirements of different materials, improving production flexibility and efficiency.
4. It features a complete lubrication system that automatically shuts off when the oil temperature is too high or the flow rate is too slow.
5. The internal structure has excellent sealing performance, effectively protecting the Symons cone crusher from dust and other small particles.

Symons Cone Crusher Applications

The crushing chamber design of a Symons cone crusher is determined by the intended use of the ore. The standard type is suitable for medium crushing, the medium type for fine crushing, and the short-head type for ultra-fine crushing.

Symons cone crushers for sale are widely used in the metallurgical, construction, road building, chemical, and phosphate industries. They are suitable for crushing hard and medium-hard ores and rocks, such as iron ore, copper ore, limestone, quartz, granite, basalt, and diabase.
