Sand Making Plant
Sand Making Plant
- Capacity: 50 – 1000TPH
- Finished products: Fine sand 0.25- 0.35 mm, medium sand 0.35- 0.5 mm, coarse sand 0.5mm.
Our sand making production lines are designed to handle capacities ranging from small-to-medium to ultra-large scales. The complete system integrates feeding and conveying, crushing and shaping, screening and classification, sand washing and dewatering, and eco-friendly dust removal.
A vibrating feeder feeds raw stone into a jaw crusher for primary processing, then transfers it to a VSI sand-making machine for shaping and sand production. The resulting mixture is classified using a multi-layer vibrating screen. For applications requiring higher purity, the line incorporates sand washers, fine sand recovery units, and dewatering screens to remove silt and moisture. Belt conveyors link the various stages to ensure continuous, automated material transfer.
This sand making plant processes raw materials—such as natural rock, limestone, granite, sandstone, and river pebbles—into manufactured sand that meets construction standards. Designed as an alternative to natural river sand, the output serves as concrete aggregate for infrastructure, dry-mixed mortar, and mine-based manufactured sand projects.
Types of Material

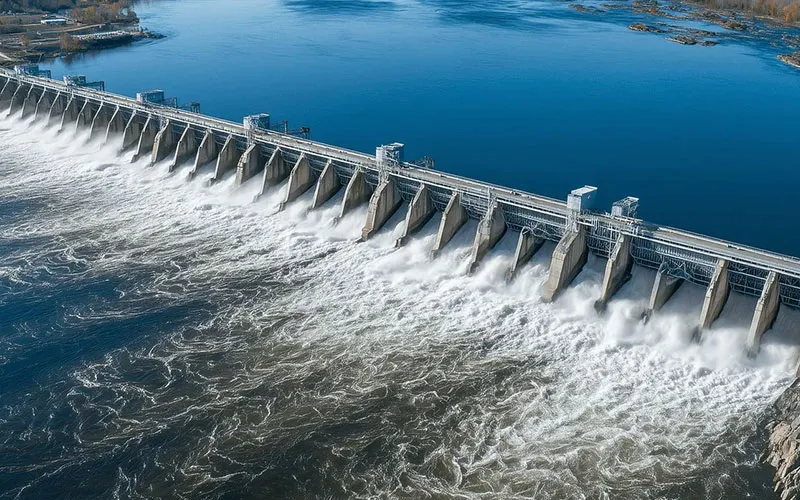

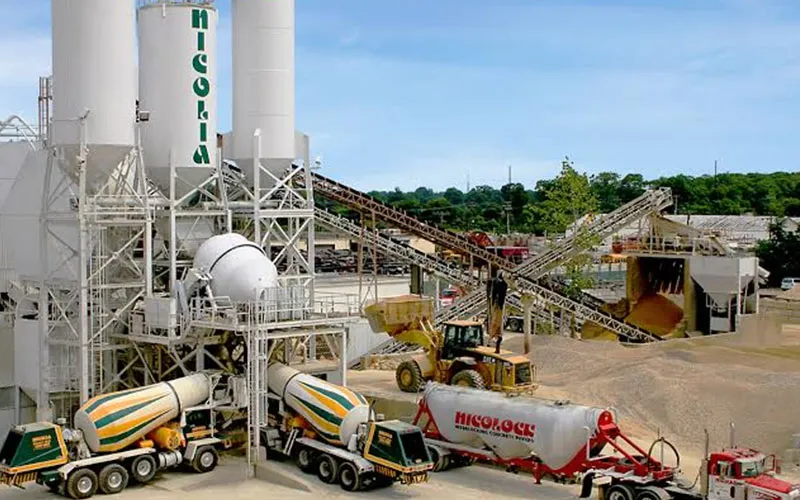

An artificial sand making plant is widely used in construction sites, highway and bridge projects, concrete batching plants, and water conservancy and hydropower engineering. It is suitable for crushing various stones and minerals, such as limestone, granite, marble, basalt, gravel, quartz, pebbles, cobbles, dolomite, and calcite.
Sand Making Plant Process
01
Feeding Process
Large raw stones are fed into a vibrating feeder, which delivers material evenly, continuously, and at a controlled rate. This ensures stable input for the entire production line.
02
Crushing Process
Stone material first enters a jaw crusher for primary crushing, reducing large raw stones to medium or small sizes. Subsequently, a cone crusher or impact crusher performs secondary crushing to further reduce particle size, meeting the feed specifications for the sand-making stage.
03
Sand Making Process
The finely crushed material is fed into a VSI (Vertical Shaft Impact) sand-making machine to shape it, smoothing sharp edges and corners. This improves particle shape, yielding high-quality manufactured sand with a cubic shape, high strength, and excellent uniformity.
04
Screening Process
Vibrating screens classify processed material by size, precisely separating sand and gravel to meet specific customer requirements. Oversized or non-compliant material can be recirculated back to the sand-making machine.
05
Sand Washing and Dewatering Process (Optional)
For materials with high clay or dust content, a sand washer and a dewatering screen can be added. These processes effectively remove impurities, soil, and excess moisture, significantly enhancing the cleanliness of the final product to produce high-quality, compliant manufactured sand.
Core Equipment for Sand Production Line
-
Vibrating Feeder Machine
Vibrating feeders for sale are widely used across various industries, including mining, metallurgy, coal, building materials, and machinery. They are used to feed lump, granular, and powdered materials—uniformly, continuously, or at a controlled rate—from storage bins or hoppers into receiving equipment.
- Capacity: 400 – 1200 t/h
- Feed Size: ≤ 1500 mm
- Motor Power: 15 – 45 kW
-
Industrial Vibrating Screens
This industrial vibrating screen operates with a circular motion. This new multi-deck vibrating screen is designed specifically for screening stone in quarries. It is also suitable for product classification in sectors such as coal preparation, mineral processing, construction materials, electric power, and the chemical industry.
- Capacity: 70 – 500 t/h
- Feed Size: ≤ 250 mm
- Screen Mesh: < 100 mm
-
Rock Sand Making Machine
A rock sand-making machine is a piece of heavy equipment designed to crush hard, brittle materials—such as rock and ore—into sand-sized particles. It is widely used in the construction, highway, water conservancy, and mining sectors.
- Capacity: 60-520 t/h
- Feed Size: 30-60 mm
-
Stone Sand Making Machine
The stone sand making machine is the core piece of equipment in an artificial sand production line. Specifically designed for the fine crushing of ore, sand and gravel shaping, and the recycling of solid waste, it is specialized equipment used to replace natural sand and enable the standardized production of sand and gravel aggregates.
- Capacity: 60-520 t/h
- Feed Size: 30-60 mm
-
Heavy‑duty Rotor Impact Crusher
The heavy-duty rotor impact crusher is a large-feed impact crushing machine. It features a widened and enlarged feed opening and an optimized crushing chamber design, primarily for coarse and medium crushing of medium- to large-sized stones. Wear-resistant and impact-resistant, it features hydraulically controlled discharge and is widely used in mining and gravel plant stone crushing processes.
- Capacity: 60-800 t/h
- Feed Size: ＜300-1000 mm
- Output Size: 10-80 mm
-
Spring Cone Crusher
The spring cone crusher for sale is a traditional medium- and fine-crushing equipment that uses a spring safety device. It is known for its robust structure and reliable operation. It features high crushing force, high production efficiency, and high output.
- Capacity: 12-800 t/h
- Feed Size: 35-300 mm
- Output Size: 3-60 mm
-
Cone Rock Crusher
The rock cone crusher is a high-performance crushing machine. It is primarily used for secondary and tertiary crushing in metal mining and construction aggregate processing. With its strong crushing capability and high output, it crushes medium-hard materials.
- Capacity: 10-2128 t/h
- Feed Size: 50-560 mm
- Output Size: 6-41 mm
-
Jaw Stone Crusher
The jaw stone crusher is a core piece of equipment used for the primary and secondary crushing of medium-hard materials. It crushes various ores and large stone blocks—such as river pebbles, granite, and construction waste—with compressive strengths ranging from 147 to 245 MPa.
- Capacity: 5-1000t/h
- Feed Size: ≤ 1200mm
- Output Size: 20-350 mm
Sand Making Plant Features
High-Quality finished product
Manufactured sand features uniform particle shape, a high cubical content, adjustable gradation, low stone powder content, and consistent quality.
Versatile material compatibility
Capable of processing medium-hard to hard ores such as granite, basalt, river pebbles, and limestone.
Wide range of applications
Suitable for material requirements across various sectors, including highway construction, building projects, water conservancy, commercial concrete, and dry-mix mortar.
Flexible configuration
Crushing and screening units can be combined to meet specific needs, supporting customized solutions.
High output and efficiency
Stable production capacity, supporting continuous operation at 50–1000 tons per hour with high efficiency.
High level of automation
Fully automated operation across crushing, sand-making, screening, and shaping processes, requiring minimal manual intervention.
Application of Sand Making Plant
Sand Making Plant Solutions
We offer customized solutions for various materials and production requirements.

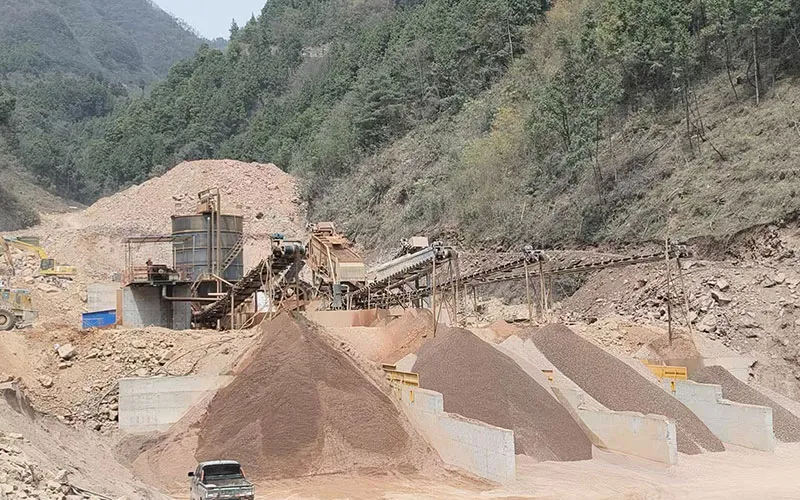

Construction Sand Making Plant

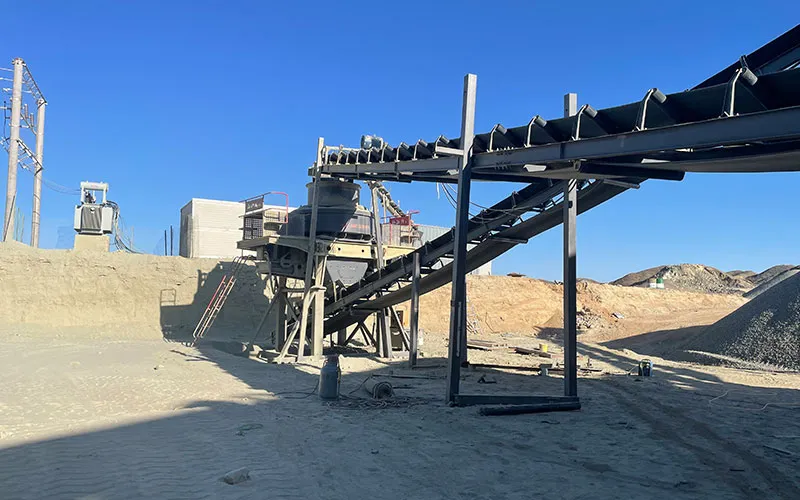

Silica Sand Making Plant
