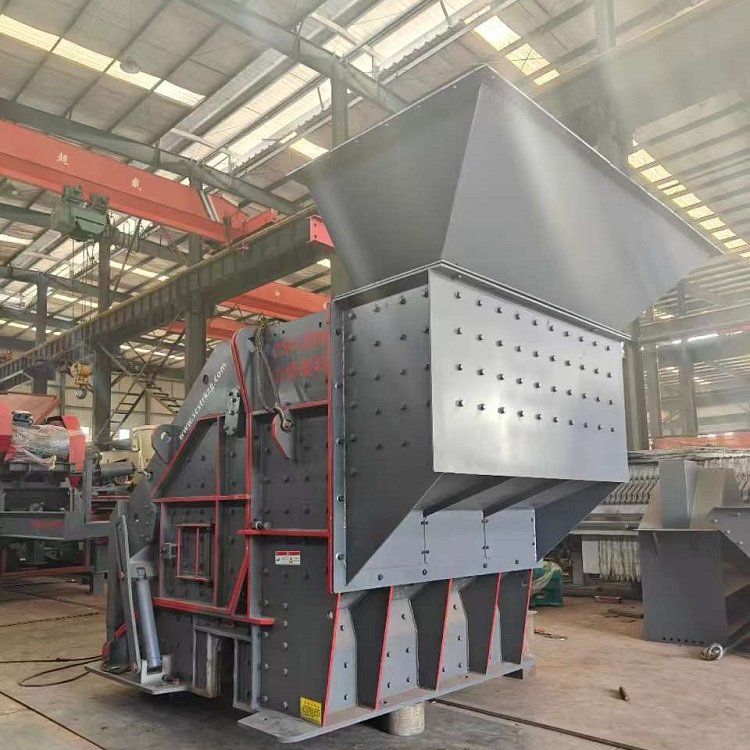

Horizontal Impact Crusher

The horizontal impact crusher utilizes the principle of impact crushing to pulverize materials. It is a crushing device that produces finer crushing than a jaw crusher. In stone production lines, it is mainly used for medium and fine crushing operations, often in conjunction with a jaw crusher.

The Sandreck horizontal shaft impact crusher employs the latest manufacturing processes and a unique structural design. Its keyless connection technology not only reduces operating costs but also increases production efficiency. The finished product is cubic, free of tension and cracks, with excellent particle shape.

The horizontal impact crusher for sale can crush various medium and fine materials (granite, limestone, concrete, etc.) with a feed particle size not exceeding 900mm and a compressive strength not exceeding 350MPa. Its discharge particle size is adjustable, offering diverse crushing specifications. Currently, this machine is widely used in various ore crushing, railway, highway, energy, cement, chemical, and construction industries.

Horizontal Impact Crusher Working Principle

A horizontal shaft impact crusher is a crushing machine that uses impact energy to crush materials. Its working principle is as follows.

When the horizontal impact crusher is working, the hammers rotate at high speed. When material enters, it is struck against the impact frame. The material is crushed due to the high-speed impact.

The crushed material falls under gravity and encounters the high-speed rotating hammers again, being struck against the impact frame once more for further crushing.

This process repeats until the material is crushed to the desired particle size and discharged from the bottom of the machine.

By adjusting the gap between the impact frame and the rotor frame, the particle size and shape of the material can be changed.

Features of Horizontal Shaft Impact Crusher

1. Horizontal impact crushers are characterized by a large crushing ratio and high output.
2. They also have a shaping function. The aggregates produced by horizontal impact crushers have a reasonable gradation, good particle shape, and are cubic in shape, meeting the grading standards of various sand and gravel aggregates.
3. The discharge particle size is adjustable, simplifying the crushing process.
4. High-chromium hammers provide impact resistance, wear resistance, and high impact force.
5. Unique impact teeth and keyless connection facilitate maintenance, ensuring stability and reliability.
6. Horizontal impact crushers for sale have a rational hammer structure, featuring quick loading and unloading and multiple repositioning capabilities. This shortens hammer replacement time.

Horizontal Impact Crusher Applications

Application Industries: Horizontal shaft impact crushers are widely used in the medium and fine crushing stages of mining, construction, building materials, chemical, metallurgy, highway, and railway industries.

Applicable Materials:

Rocks: Limestone, dolomite, granite, basalt, tuff, shale, sandstone, marble, quartzite (feed particle size and hardness need to be controlled).

Ores: Lead-zinc ore, iron ore, copper ore (oxidized ore), gold ore, molybdenum ore (coarse crushing followed by medium and fine crushing), quartz sand, potassium feldspar.

Industrial Solid Waste: Concrete blocks, construction waste (bricks, cement blocks), tailings slag, furnace slag, steel slag, coal gangue.
